Equipment list for oil and gas parts machining

Machine Type	Brand	Origin	Model number	Quantity	Working Stroke	Accuracy & Tolerance
CNC Milling 5Axis	DMG	Germany	DMU80MONO	1	X:950Y:850Z:650mm	Positioning Accuracy:0.006 Repositioning Accuracy:0.005 18000RPM Tolerance:0.003
CNC Milling 5Axis	Matsuura	Japan	matsuuranx-520	2	X:550Y:750Z:450mm	Positioning Accuracy:0.008 Repositioning Accuracy:0.003 20000RPM Tolerance:0.002
CNC Milling 5Axis	JDR	China	JDR200TP13SHA	5	X:500Y:600Z:400mm	Positioning Accuracy:0.005 Repositioning Accuracy:0.008 24000RPM Tolerance:0.005
CNC Milling 9Axis	Mazak	Japan	INTEGFEX1-200S	1	X:100600Y:100*Z:2160mm	Positioning Accuracy:0.005 Repositioning Accuracy:0.003 24000RPM Tolerance:0.003
CNC Milling 3Axis	Brother	Japan	S500 X1	20	X:500Y:460Z:300mm	Positioning Accuracy:0.005 Repositioning Accuracy:0.008 24000RPM Tolerance:0.01
CNC Milling 3Axis	Taikan	China	T550H	30	X:550Y:400Z:350mm	Positioning Accuracy:0.005 Repositioning Accuracy:0.01 20000RPM Tolerance:0.015
CNC Milling 3Axis	QiaoFeng	China	QF-1750	3	X:1370Y:1300Z:550	Positioning Accuracy:0.01 Repositioning Accuracy:0.02 16000RPM Tolerance:0.02
Automatic Lathe	TSUGAMI	Japan	S206A / SS327 / 5205A / B0208	82	Φ20 / Φ25 / Φ55*3000	Positioning Accuracy:0.005 Repositioning Accuracy:0.005 18000RPM Tolerance:0.003
CNC Lathe	Shenyang	China	IT35L / 65	10	Φ35 / Φ552500650	Positioning Accuracy:0.005 Repositioning Accuracy:0.006 16000RPM Tolerance:0.01
Milling Complex Machining Center	Mazak	Japan	QTN100MSY/KS	20	Φ552500350	Positioning Accuracy:0.005 Repositioning Accuracy:0.003 20000RPM Tolerance:0.005
Combined Turning and Milling	DMG	Germany	NT6600	1	Φ1070*6150	Positioning Accuracy:0.005 Repositioning Accuracy:0.005 12000RPM Tolerance:0.005
Laser Cutting Machine	DiNeng	China	DNE1530FCCBDX1000W	2	1500300010	Accuracy ±0.05mm
CNC Bending Machine	DongYangji	Japan	HPB12530	3	1.2m	Accuracy ±0.02mm

Workshops and machines for oil and gas parts machining

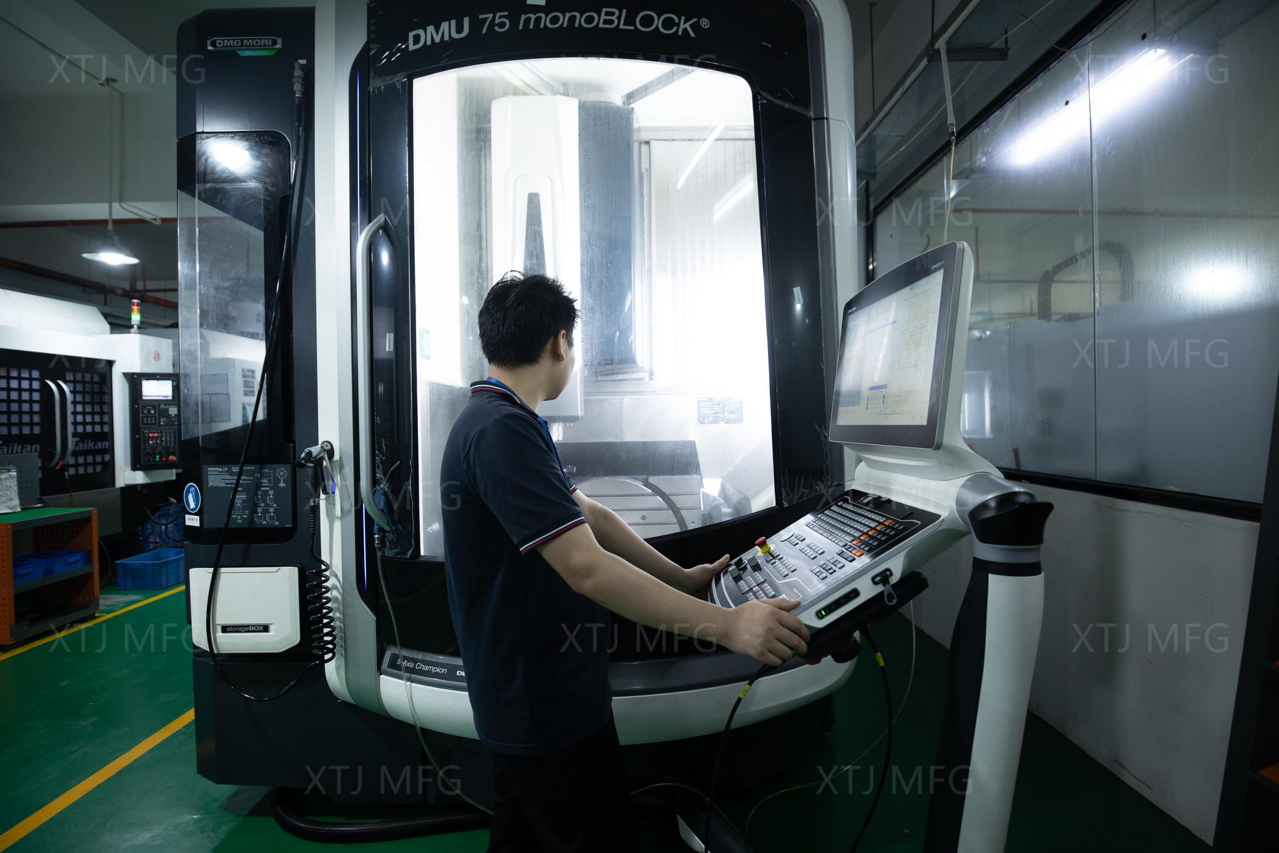

DMU75 MonoBlock Universal Machining Center By DMG Germany Maximun Working Travel 750MM X 650 MM X 560MM Max. Speed:65 X 50 X 80 (m/min)

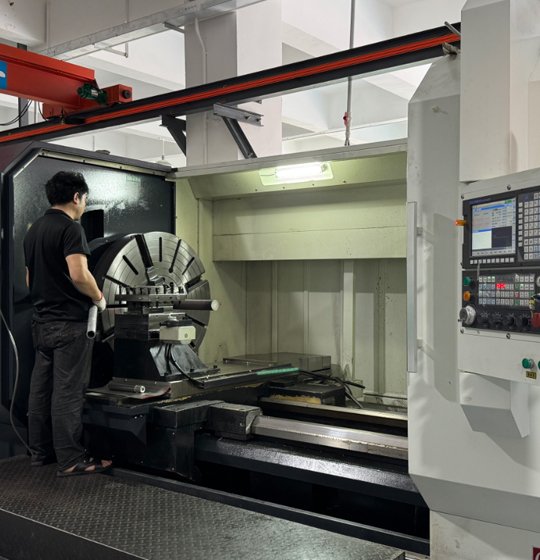

Heavy-Duty CNC Lathe CK61125 Maximum Swing: 1250 mm
Max Turning Length: 2500–3000 mm
Spindle Bore: 105–130 mm
Max Speed: 800–1200 RPM

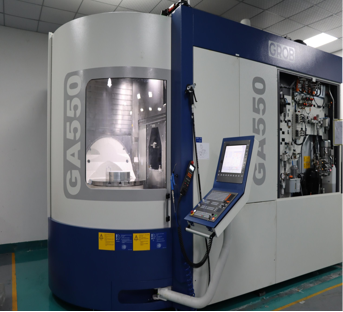

G550 5-Axis Universal Machining Center By GROB Germany Maximun Working Travel: 800MM X 1020 MM X 970MM Max.Speed: 65/50/80(m/min)

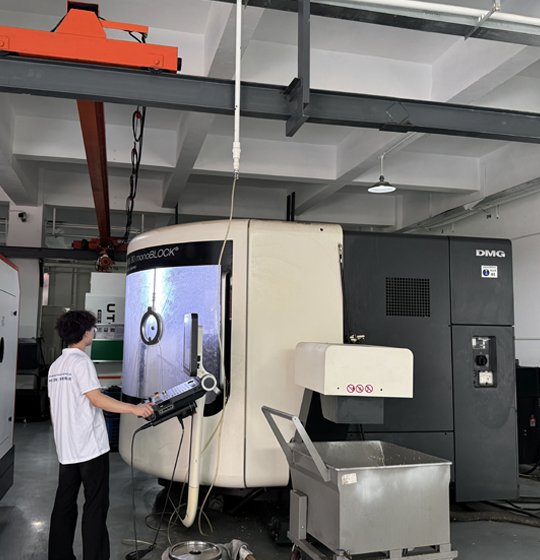

DMU80 MonoBlock Universal Machining Center By DMG Germany Maximun Working Travel: 800MM X 650 MM X 550MM Max. Speed: 20,000(RPM)

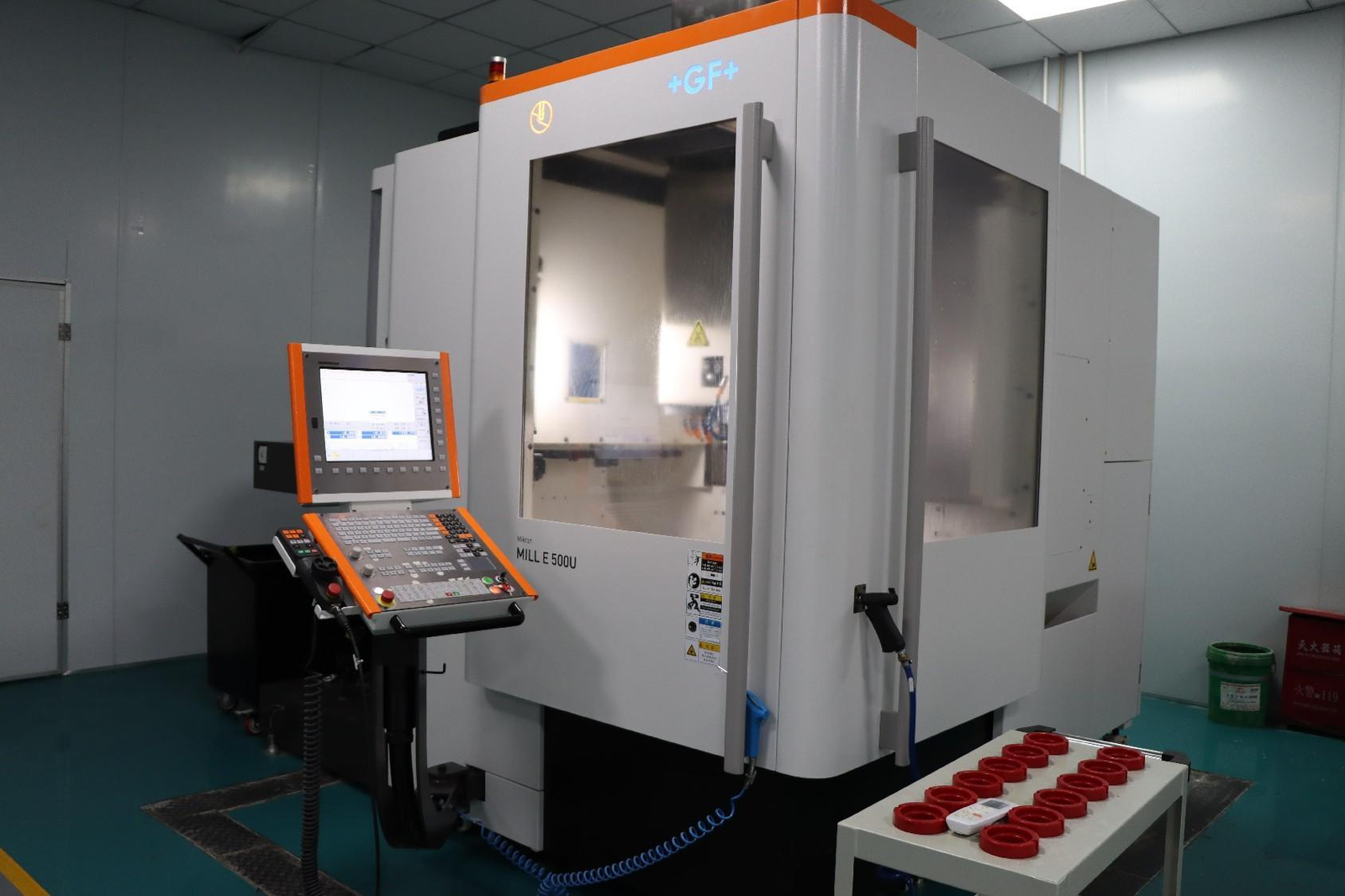

The Mikron MILL E 500 U By GF Machining Solutions UK Maximun Working Travel: 500MM X 450 MM X 400MM Max. Speed: 20,000 (RPM)

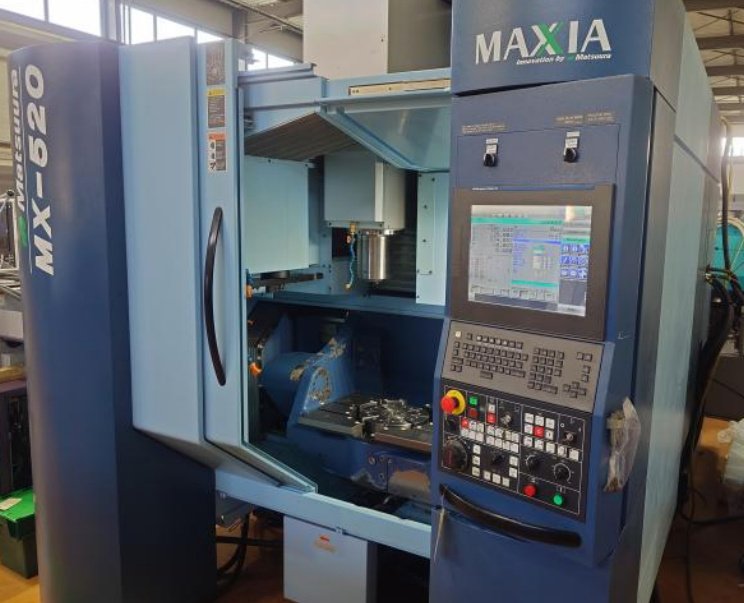

Matsuura NX-520 5-Axis CNC Machining CenterMaximum Travel: 520 × 350 × 510 mm
Max Spindle Speed: 18,000 RPM
Accuracy: 0.005 mm (Linear Encoder)

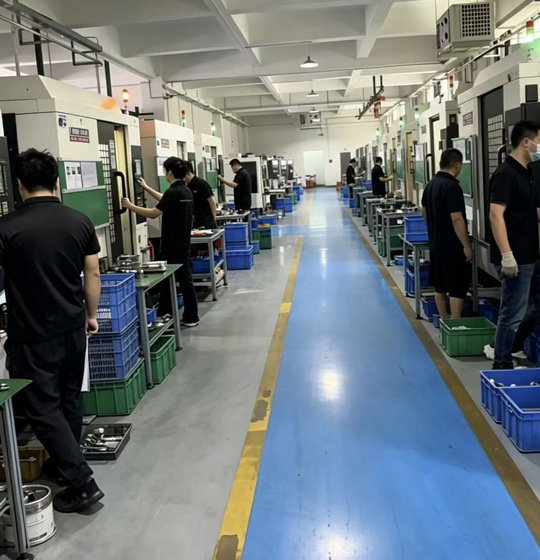

CNC 3-Axis Milling Machines
Maximum Travel: 500 × 400 × 300 mm. Max Spindle Speed: 24,000 RPM

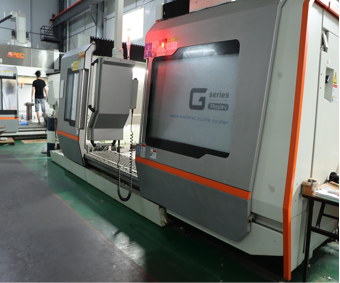

5-Axis High-Speed Gantry Machining Center By APEC Tai Wan China Maximun Working Travel: 4000MM X 2500 MM X 1000MM Max. Speed: 24,000 (RPM)

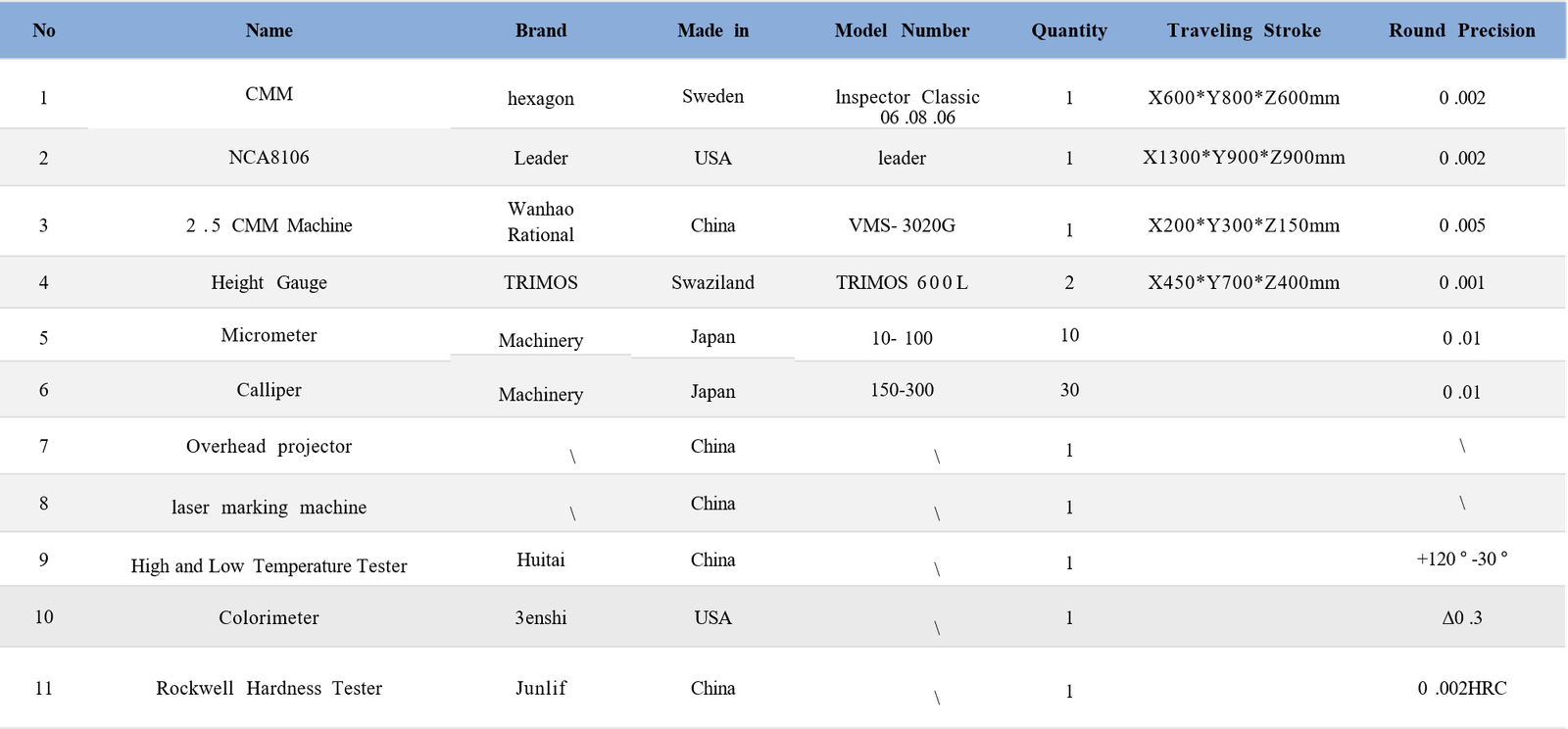

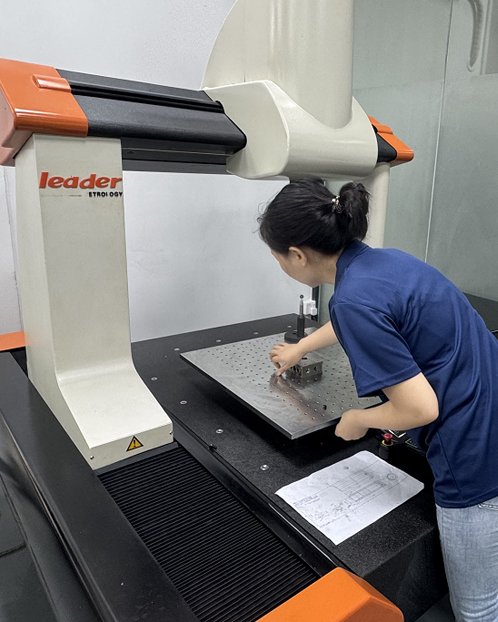

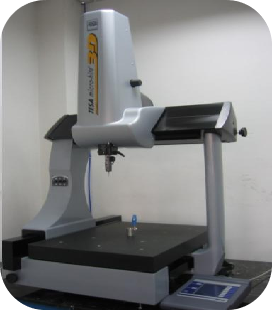

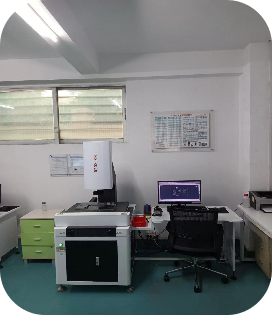

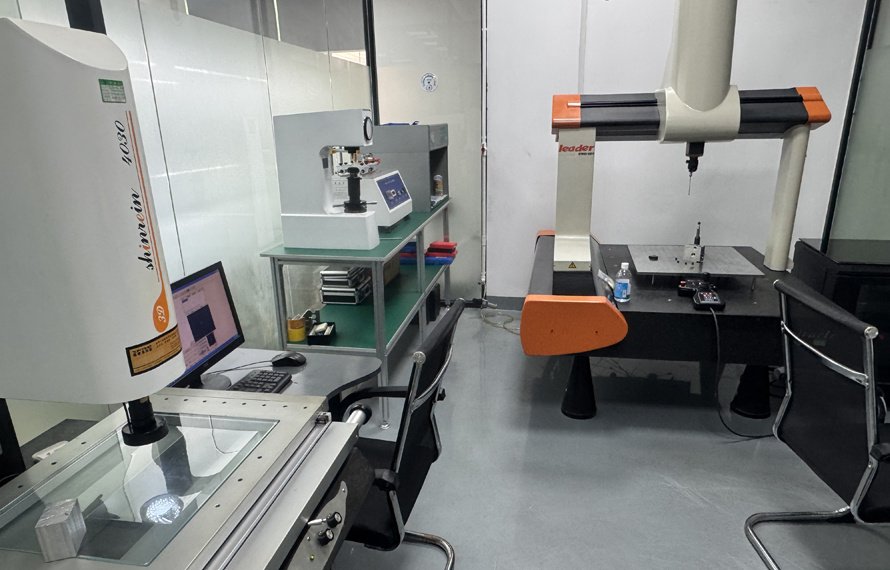

Quality Control Equipment for oil and gas parts machining

Adhering to ISO9001 standards, XCM established a robust quality management system. XCM prioritized customer satisfaction and continuous improvement. Our development strategy revolves around closely customers’needs.We employ strategic approaches like SPQP and PMP, along with control methods such as SPC and DFMEA. In case of any issues, we implement corrective measures using the 8D method, while ensuring precise measurement analysis through MSA to uphold quality standards. To further assure the quality of our products,we possess the top notch inspection equipment and provide comprehensive documentation including FAI Reports, Full Dimensional Reports and Material Certifications.
